Shaker Screen with Stainless Steel Tank

Make the most of your wastewater by installing a Shaker Screen and Stainless Steel Tank System. Increased concerns from city sewer systems mandating the reduction of suspended solids or implementing high surcharges make the Shaker Screen and Tank System a cost-effective way to enhance any commercial or industrial laundry system.

The Shaker Screen is an effective way to filter wastewater. The gyrating motion separates the suspended solids (lint, dirt, etc.) from the hot wastewater. All oversized material travels to the discharge chute where it can be disposed of properly.

To save valuable floor space, theShaker Screen can be mounted directly above the stainless steel tank. The screened hot wastewater is stored in the tank until pumped to the heat exchanger or pit. Incoming cold water is then brought to within five degrees of the wastewater.

Screened wastewater will maximize the heat exchanger’s efficiency and reduce the need for continual backwashing.

  • Shaker Screens available in 24”, 30”, 40”, 48”, and 60”
  • Large inventory of screen mesh
  • Reduce or eliminate wastewater surcharge and pit cleaning

Midwestern will work closely with you to establish the most effective configuration for your screening process.

Request Information

Contact Midwestern for more information regarding this MR Separator and how it can be implemented into your application.

More Information
  • icon

    Tank/Sep. Brochure
    Download Midwestern’s Brochure for the Separator and Tank Brochure.

    Download Brochure
  • icon

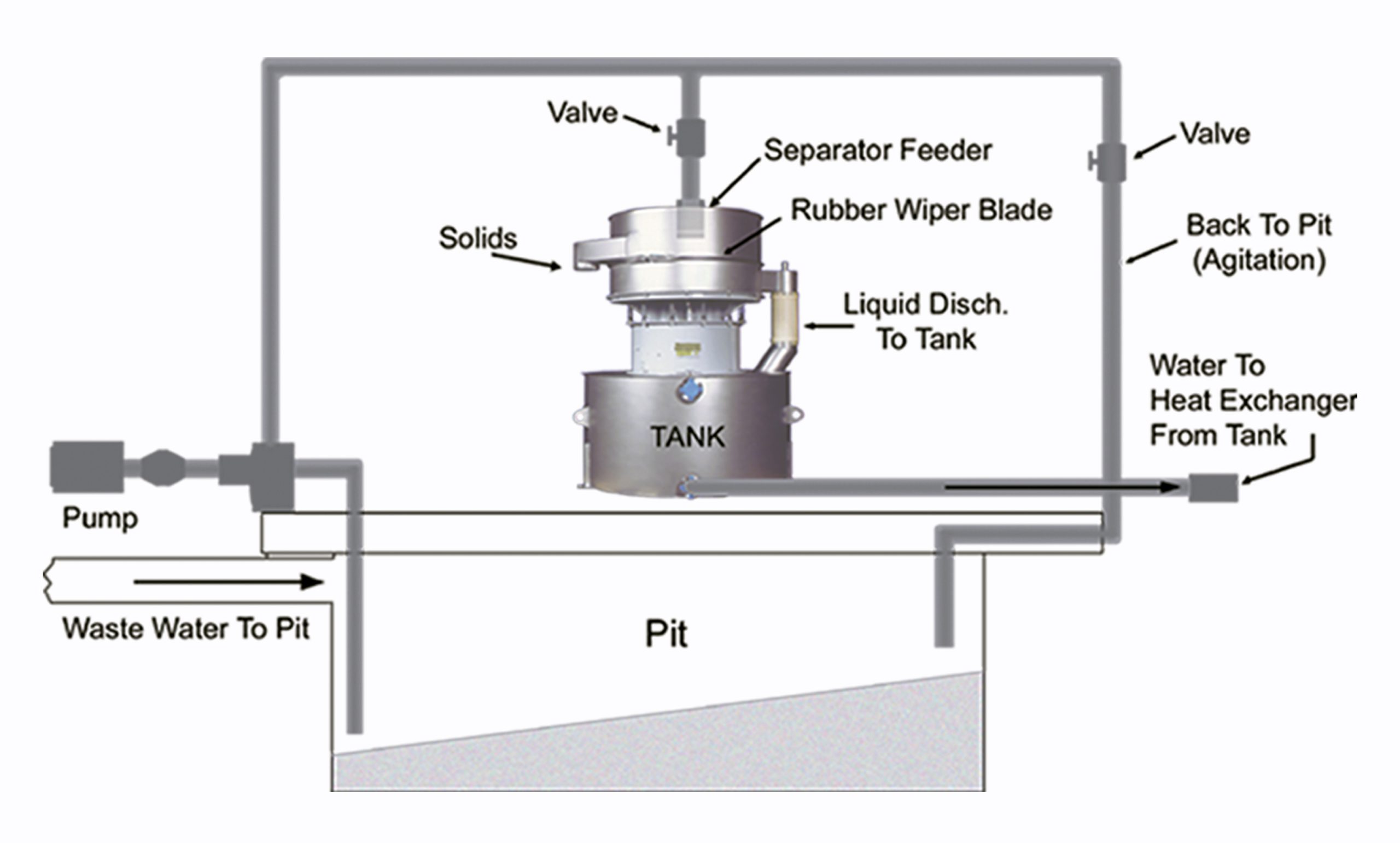

    Diagram

    Implementing the separator and tank combination can be installed into an existing process.

    Installation Example
  • icon

    Free Test Facility

    To better serve our customers, Midwestern offers our full-scale Test Facility free of charge.

    More Information
Instructional Videos
Change Ball Tray and Screen

This video will show you step-by-step how to change a screen with a center hole with particular focus on the proper procedures of both taking off an existing screen and replacing it with a new one.

View Full Version
Screen Change for Slider Assembly

This video demonstrates how to change a screen with a clip-in slider assembly commonly found on separators that help eliminate blinding.

View Full Version
Aftermarket Parts
ad_round_screens
We Supply ALL Your Screens and Parts!

Midwestern’s commitment to providing our customers with outstanding screening products continues with our full line of replacement round screens. Our screens are manufactured to fit all makes and models of round vibratory screeners.

Explore Your Options
