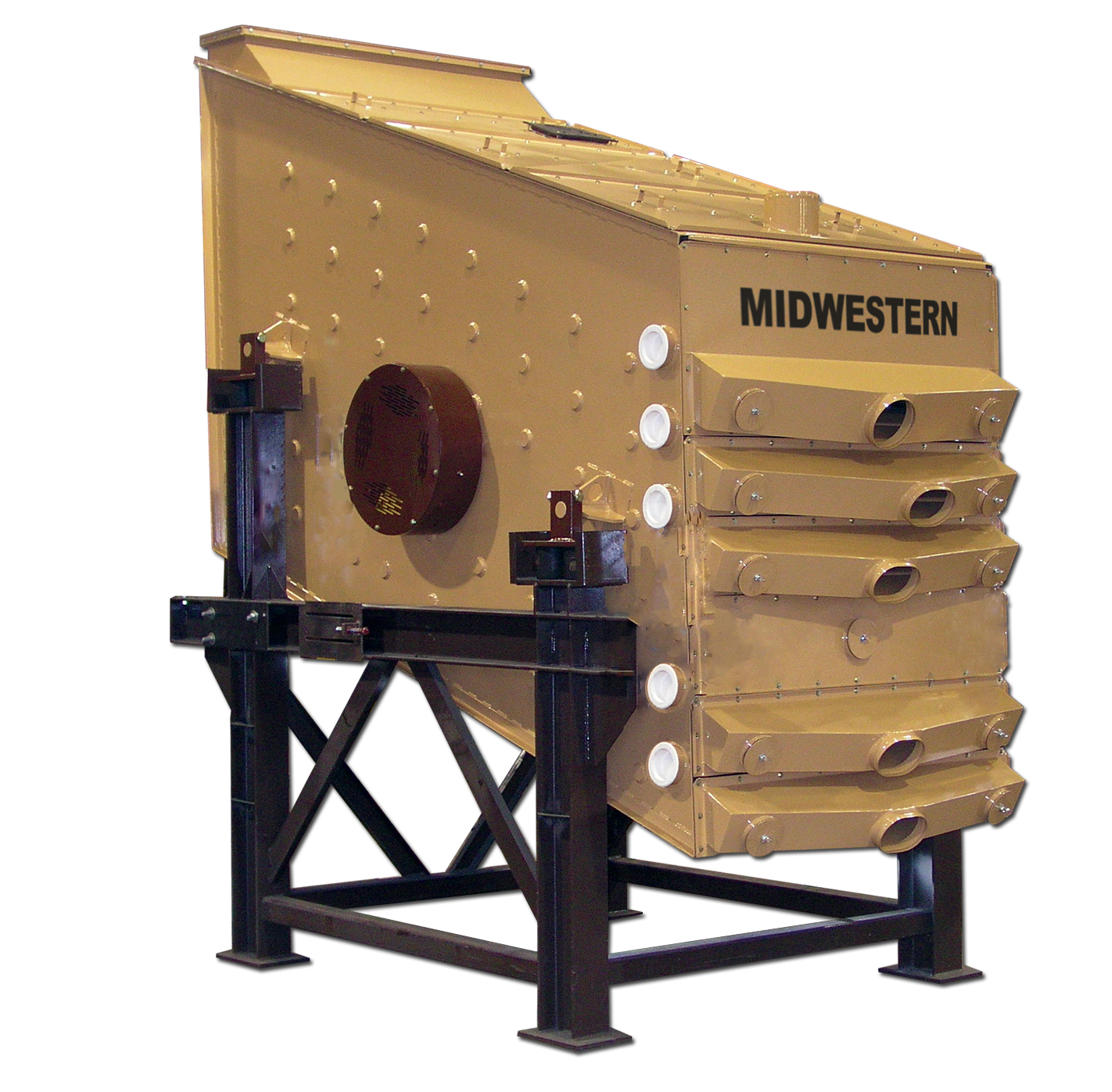

MEV® High-Frequency Screener

The high-frequency screens manufactured by Midwestern can be utilized in many screening applications from rugged quarry and rock sizing to sand and gravel processing and high volume fine mesh screening. With a variety of sizes and screening decks, the versatile MEV Screener can fit numerous applications.

The MEV High-Frequency Screener is a rectangular screener that utilizes an elliptical motion to convey material across its screening surface. Available in sizes three-foot by five-foot (3′ x 5′), four-foot by eight-foot (4′ x 8′), and five-foot by ten-foot (5′ x 10′) with the availability of one to five screening decks gives the MEV Screener the versatility to meet your screening needs.

The MEV Screener is designed to retain material at the feed end for a longer period of time and then gently slops the material near the discharge end, assisting it off the screening deck and into production. This is achieved by the screener’s unique parallel-arc configuration. Crossbars support the end-tensioned screens to create a flat screening surface, thus maximizing the screening area.

The end-tensioned screens used in the high-frequency screener simplify changing screen panels. End-tensioning permits the use of square-opening and slotted screens and is accurately maintained by a spring-loaded drawbar. Users can make screen changes in 10⎯15 minutes.

Optional Equipment Accessories:
  • Screen Heating
  • Material distributors
  • Ball trays for antiblinding
  • Dust-tight enclosed units for dry screening
  • Spray bars for washing application
Request Information

Contact Midwestern for more information regarding this MEV® Rectangular Screener and how it can be implemented into your application.

More Information

Rectangular Brochure
rectangular_brochure

Focuses on all of our rectangular screening equipment.

Download here

  • icon

    Screener Brochure

    Download Midwestern’s Brochure for the MEV High Frequency Screener.

    Download Brochure
  • icon

    Illustration

    Multilple screening surfaces allows the MEV to effectively make multiple products with one pass.

    View Diagram
  • icon

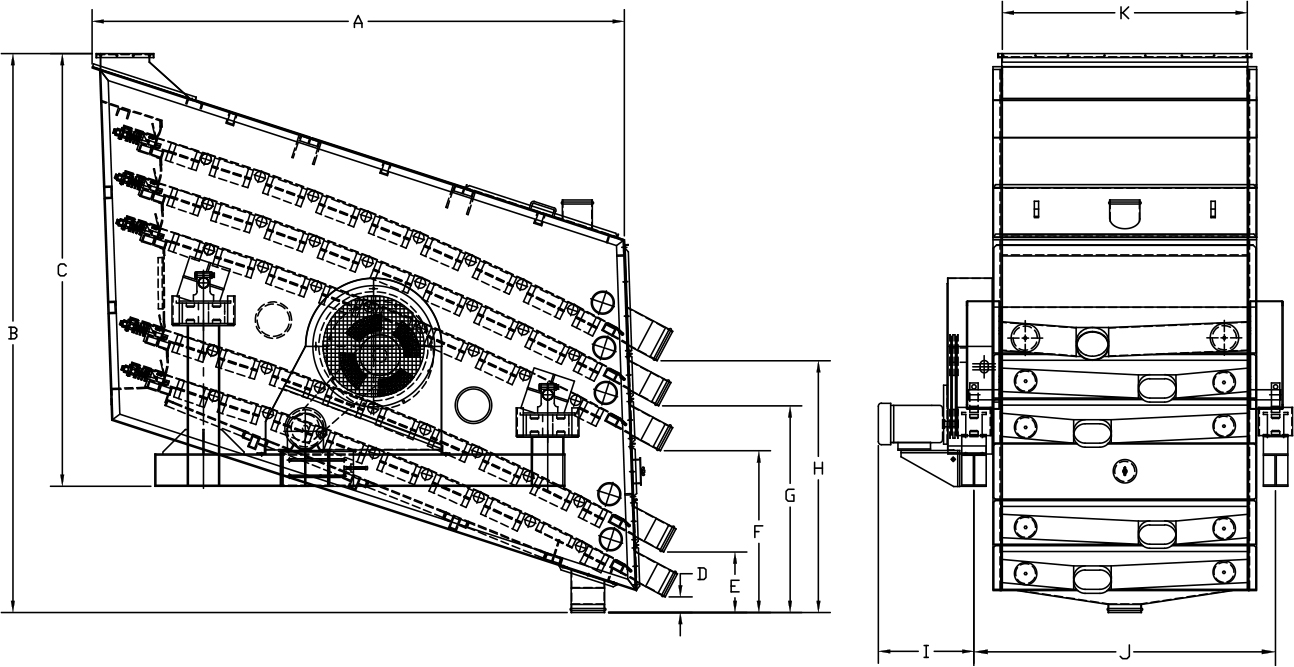

    Auto-CAD & Dimensions

    Midwestern offers our MEV in 1-5 screening decks and various sizes. Review some options.

    View Dimensions
Instructional Videos
Screening Frac Sand

Midwestern Screeners are effectively screening sand for the frac sand industry. Our equipment and replacement screens will allow for multiple products to be made with just one pass.

View Full Version
Free Test Facility

Midwestern provides our customers with one of the most advanced testing facilities in the screening industry ⎯ FREE of charge.

View Full Version
Aftermarket Parts
panels
We Supply ALL Your Screens and Parts!

Midwestern’s commitment to providing our customers with outstanding screening products continues with our full line of replacement rectangular screens. Our screens are manufactured to fit all makes and models of screeners.

Explore Your Options
