Multi-Vib® High-Frequency Screener

The Multi-Vib High-Frequency Screener is a powerful screener in a compact, highly efficient design. Utilizing the entire screening surface, the Multi-Vib Screener can do the job of its much larger counterparts. Save time and money with its quick-change, end-tension screens.

The Multi-Vib High-Frequency Screener is constructed to handle tuff-screening applications that larger screens typically can’t handle. The two counter-rotating motors create a lineal motion that enables the Multi-Vib Screener to screen finer particles accurately and efficiently.

The screener is designed with a unique parallel-arc configuration found on both Midwestern’s MEV and Multi-Vib Rectangular Screeners. Crossbars support the end-tensioned screens and create a flat screening surface for the material to travel. Where most other makes of rectangular models have a crown or an arc that pushes the material outward, the Multi-Vib utilizes the entire screen deck, thus giving it the ability to do the job of a larger screener but in a more compact design.

The end-tensioned screens used in the Multi-Vib Screener simplify changing screens. Users can make screen changes in 10⎯15 minutes rather than other timely models.

The Multi-Vib High-Frequency Screener is available in sizes: 3′ x 5′, 4′ x 6′, and 5′ x 7. The screener also comes with the choice of three- or five-deck units.

Optional Equipment Accessories:
  • Screen Heating
  • Material distributors
  • Ball trays for antiblinding
  • Dust-tight enclosed units for dry screening
  • Spray bars for washing application
Request Information

Contact Midwestern for more information regarding this screener and how it can be implemented into your application.

More Information

New Rectangular Brochure
rectangular_brochure

Focuses on all of our rectangular screening equipment.

Download here

  • icon

    Screener Brochure

    Download Midwestern’s Brochure for the Multi-Vib® High Frequency Screener.

    Download Brochure
  • icon

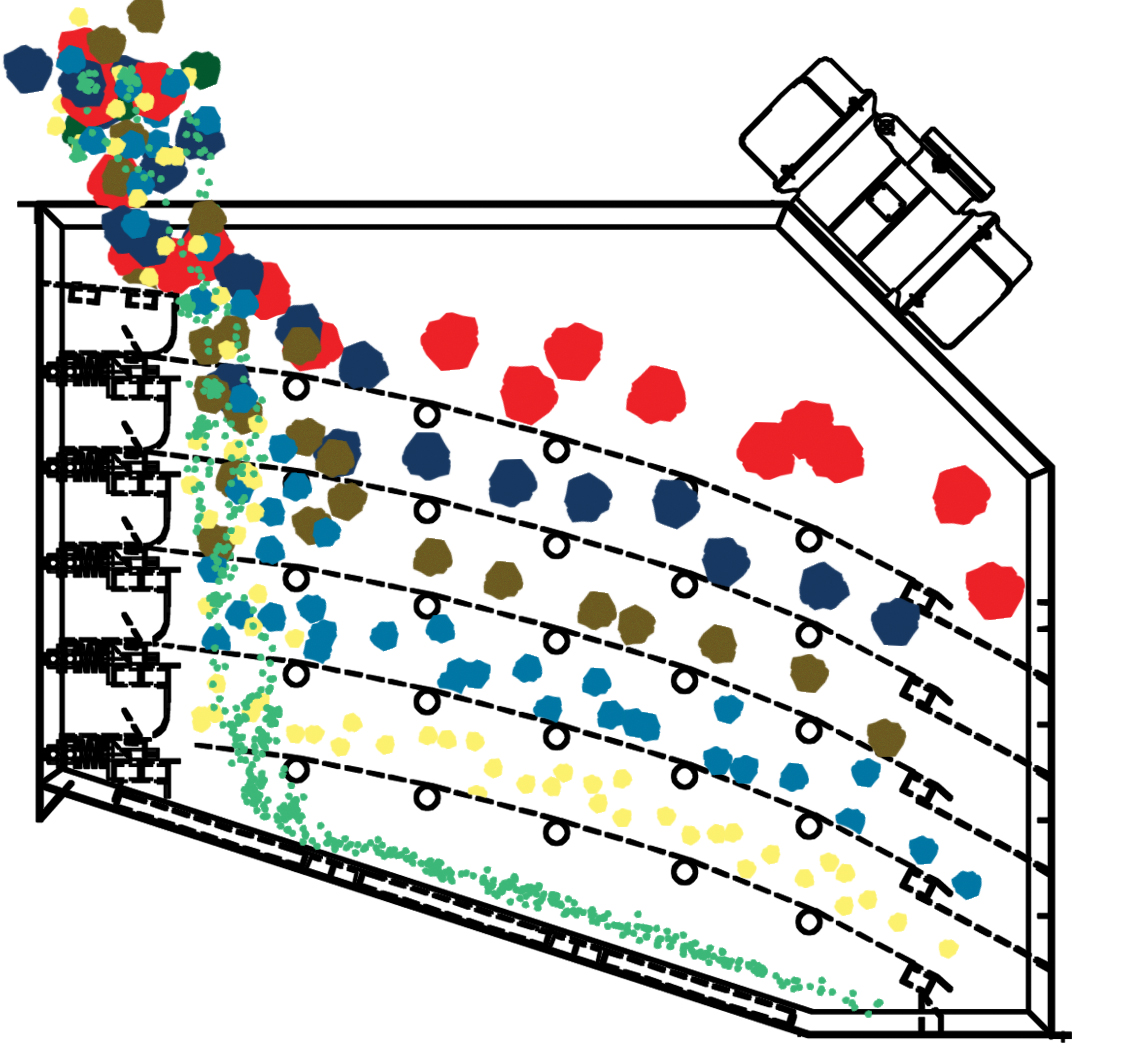

    Illustration

    Multilple screening surfaces allows the Multi-Vib to effectively make multiple products with one pass.

    View Diagram
  • icon

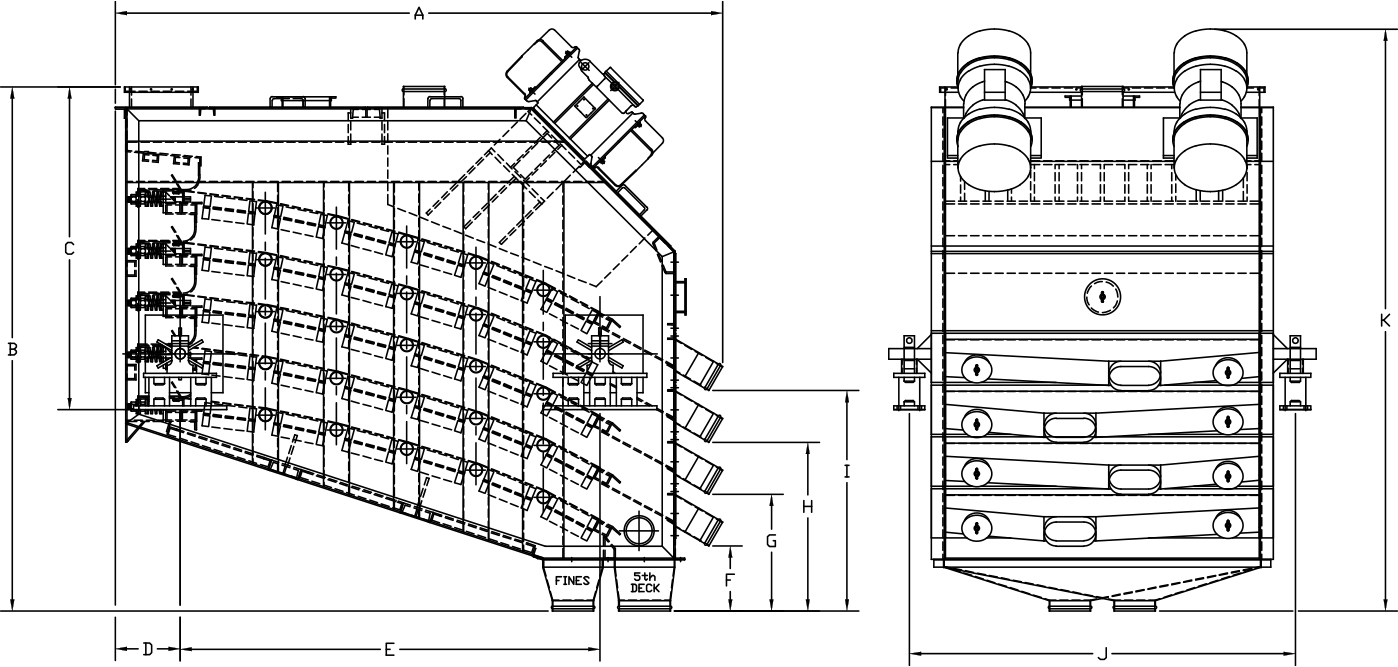

    Auto-CAD & Dimensions

    Midwestern offers our Multi-Vib® in 3 and 5 screening decks and various sizes. Review some options.

    View Dimensions
Instructional Videos
Screening Frac Sand

Midwestern Screeners are effectively screening sand for the frac sand industry. Our equipment and replacement screens will allow for multiple products to be made with just one pass.

View Full Version
Free Test Facility

Midwestern provides our customers with one of the most advanced testing facilities in the screening industry ⎯ FREE of charge.

View Full Version
Replacement Parts
panels
We Supply ALL Your Screens and Parts!

Midwestern’s commitment to providing our customers with outstanding screening products continues with our full line of replacement rectangular screens. Our screens are manufactured to fit all makes and models of screeners.

Explore Your Options
