KLEAR-SCREENS

Midwestern KLEAR-SCREENS are available in four types of screen styles: Type-S, Type-M, Type-W, and Type-H.  All KLEAR-SCREENS are individually manufactured to required size and specifications. Designed for Midwestern Industries screeners as well as most makes and models of screeners. KLEAR-SCREENS can increase screening efficiency, increase screen life, and produce consistent product. They are designed to decrease cost per ton and can be made to fit most applications and units.

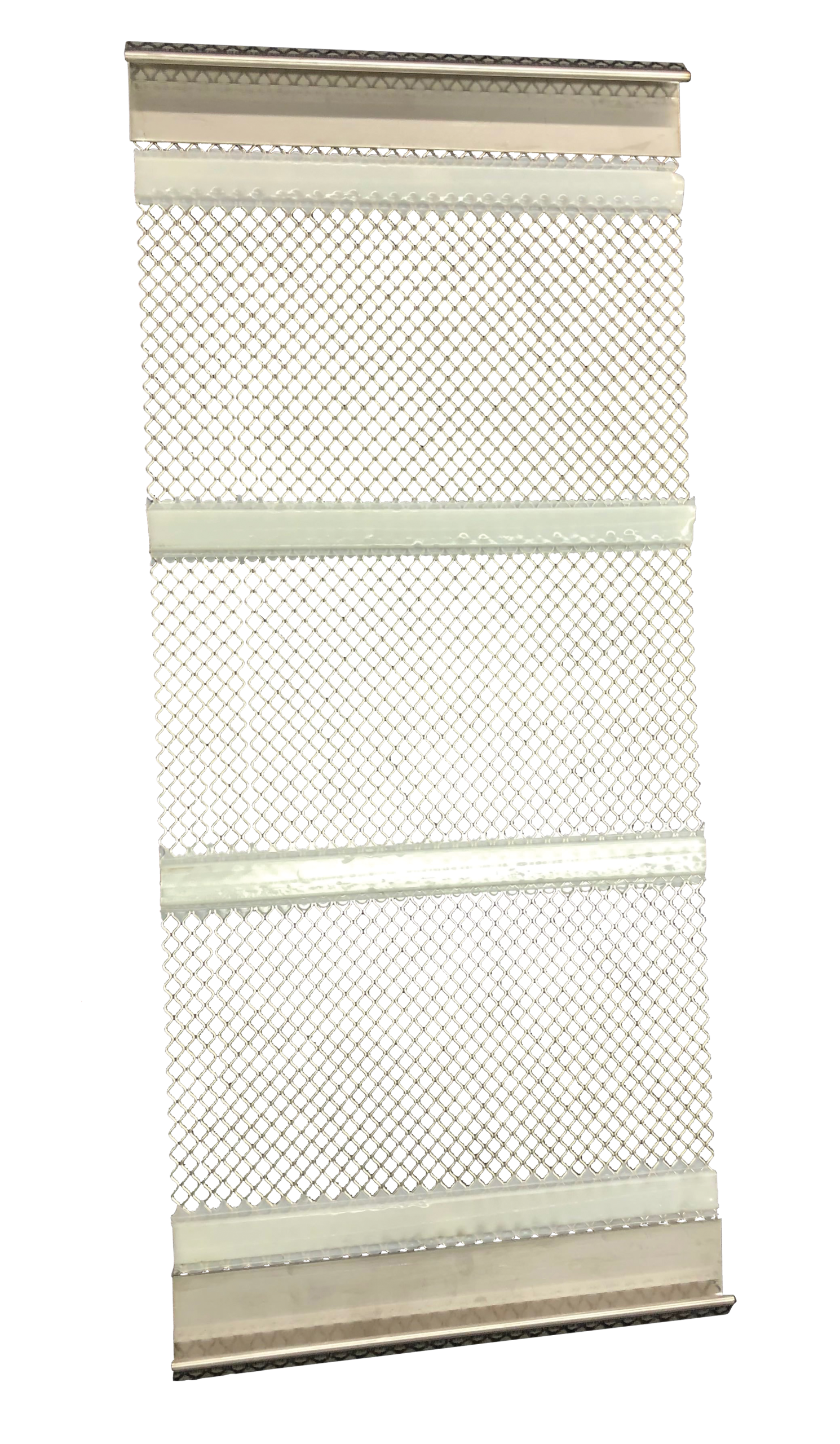

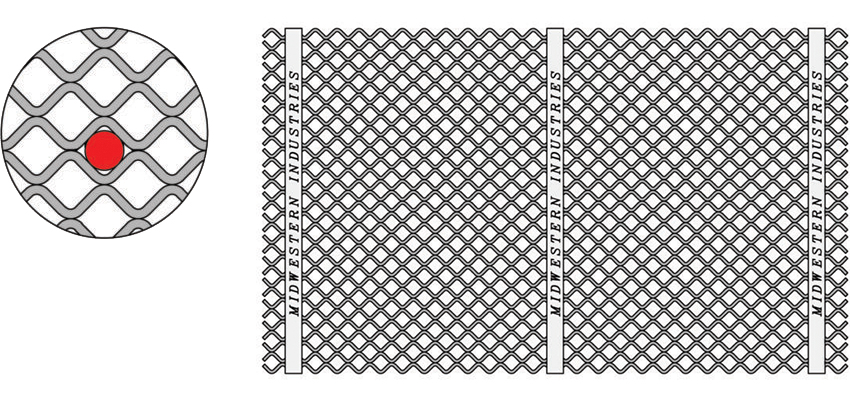

KLEAR-SCREEN Type-S

The Type-S panels are ideal for applications with a high percentage of near sized particles that often cause blinding in traditional woven mesh screens. This style of screen has a square opening and is measured the same as woven wire openings. Available in openings ranging from 1/8″ to 1″ and in a variety of wire sizes.

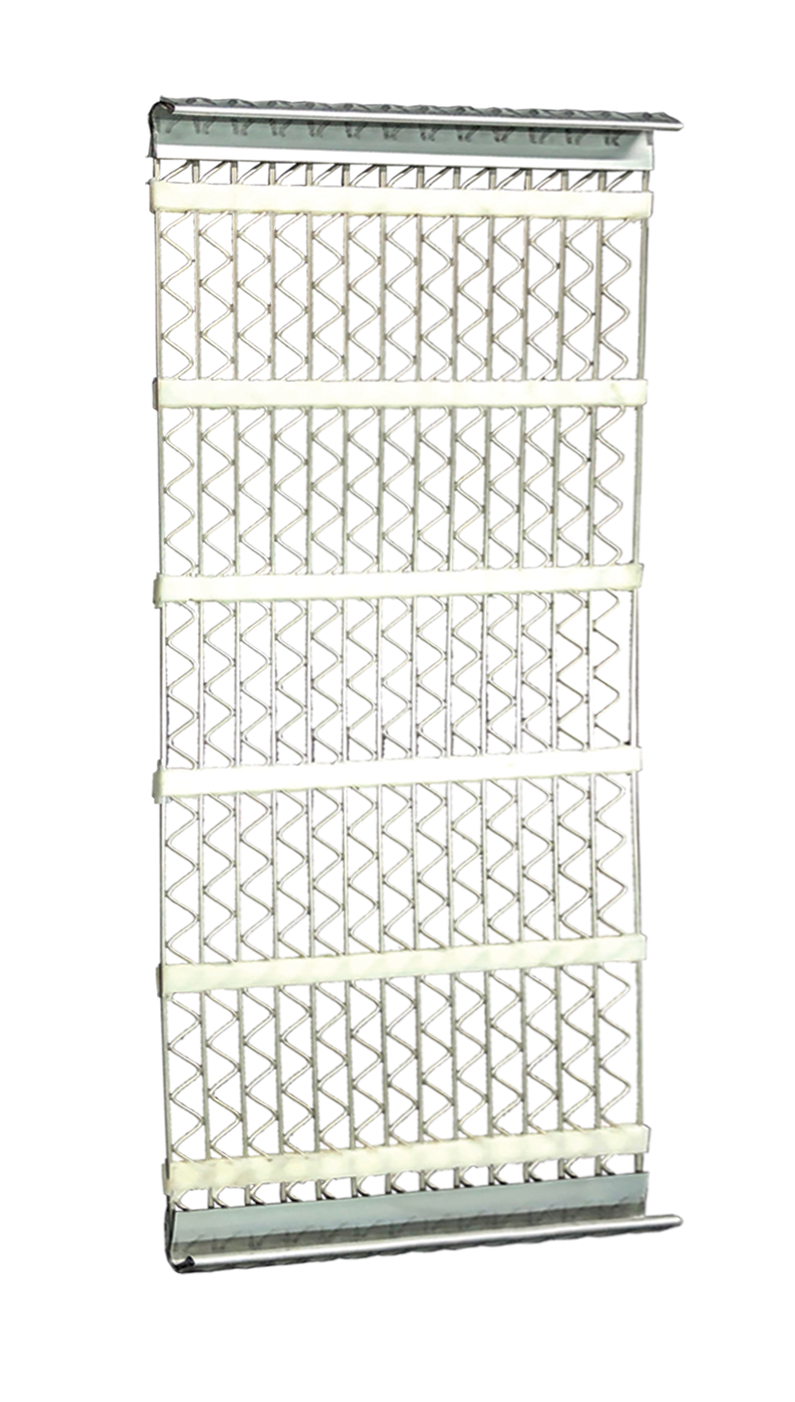

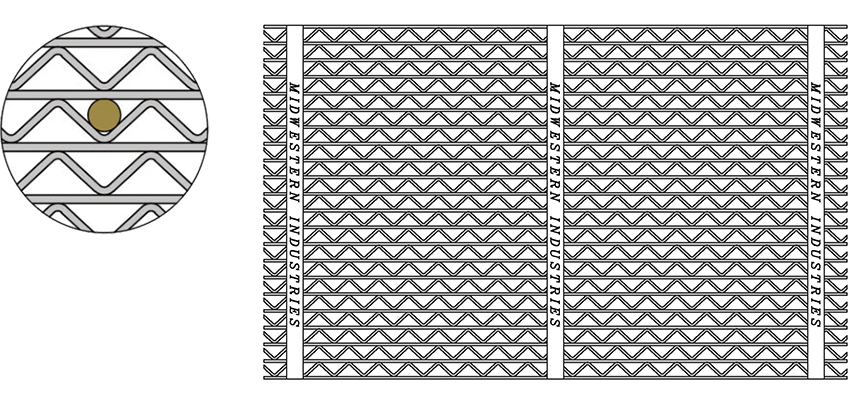

KLEAR-SCREEN Type-M

The Type-M panels are ideal for applications with high impact and heavier loading. This style is also great for smaller opening for fine material. The “M” style screen has a triangle opening which is obtained by alternating crimped and straight wires. The crimped and straight wires vibrate at different frequencies which practically eliminates blinding and optimizes throughput. Available in openings ranging from 1/8″ to 1″ and in a variety of wire sizes.

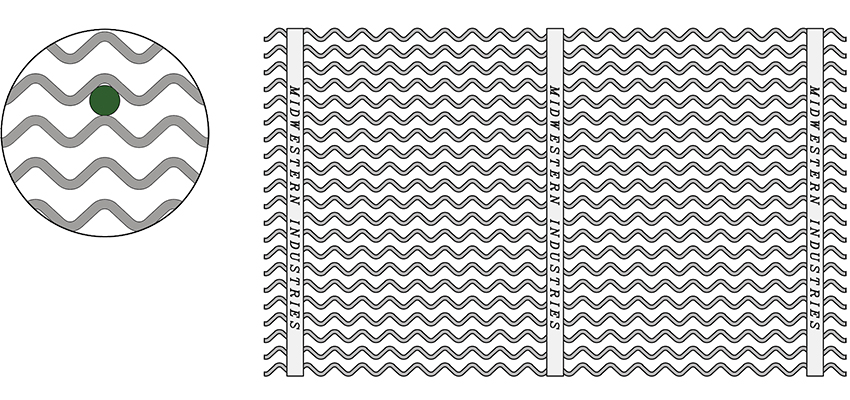

KLEAR-SCREEN Type-W

The Type-W panels are ideal for applications with a high percentage of fine material. This “W” style screen provides a large percentage of open area and utilizes a “W” shaped opening with all wires parallel to each other. Available in openings ranging from 1/8″ to 1″ and in a variety of wire sizes.

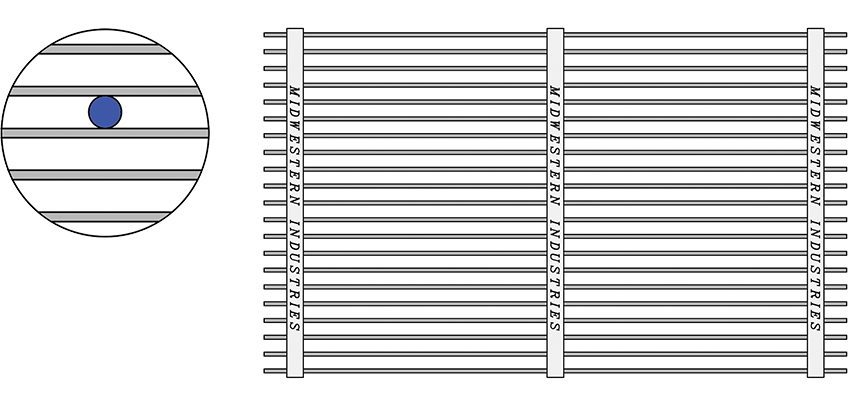

KLEAR-SCREEN Type-H

The Type-H panels are ideal for applications with a high percentage of fine material. This “H” style screen offers the largest percentage of open area in the KLEAR-SCREEN lineup. It is based off a traditional harp style screen where all wires are parallel to each other. Available in openings ranging from 1/8″ to 1″ and in a variety of wire sizes.
